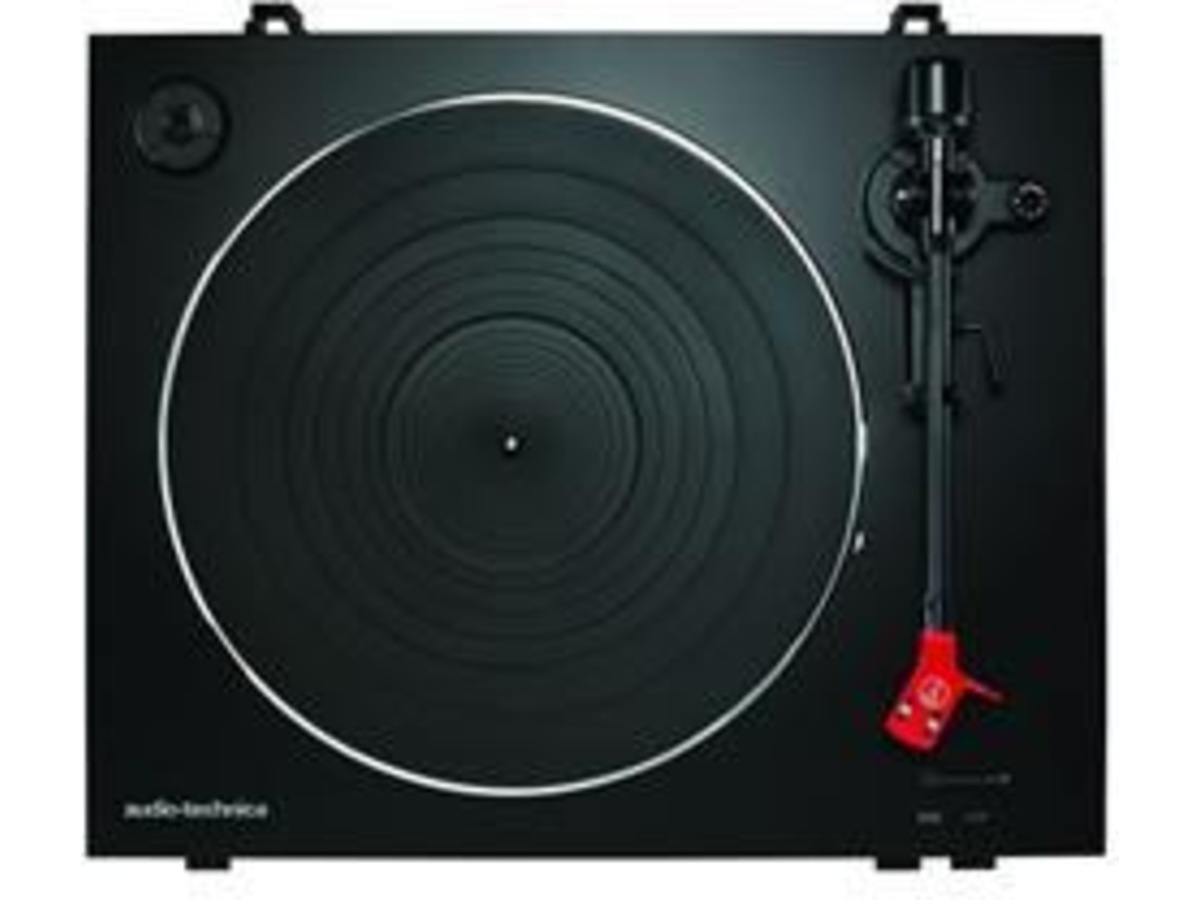

AT-LP3

FULLY AUTOMATIC BELT-DRIVE STEREO TURNTABLE WITH UNIVERSAL TONEARM & HEADSHELL

Fully Automatic Belt-Drive system

Specially designed AT91R phono cartridge

Removable universal AT-HS3 headshell

Balanced straight tonearm

Switchable MM & MC modes

33⅓ & 45 RPM selectable speeds

AT-LP3

ADVANCED FULLY-AUTOMATIC BELT-DRIVE TURNTABLE

A revolution in automation, the LP3 blends outstanding analogue sound with advanced features unique to a fully-automatic belt-drive turntable. Play 33⅓ & 45 RPM records with a pre-mounted AT91R Dual Moving Magnet phono cartridge whilst the tonearm’s removable universal headshell and switchable cartridge mode allows listeners to experiment with moving magnet and moving coil cartridges. Complete with a built-in phono pre-amplifier, the LP3 represents the next level for vinyl lovers.

• Fully automatic belt-drive turntable operation with two speeds: 33-1/3, 45 RPM
• Balanced straight tonearm with hydraulically damped lift control and lockable rest
• Built-in switchable phono/line pre-amplifier with attached dual RCA output cable
• Switchable modes for moving magnet and moving coil cartridges
• AT91R Dual Moving Magnet™ phono cartridge and AT-HS3 universal headshell
• Anti-resonance, die-cast aluminium platter with 4.5 mm thick rubber mat
• Damped base construction for reduced low-frequency feedback colouration

Turntable Type Fully Automatic, Belt-Drive Motor DC motor Speeds 33-1/3 RPM, 45 RPM Turntable Platter Die-cast aluminium Wow and Flutter Less than 0.2% WRMS (33 1/3 RPM) at3kHz Signal-to-Noise Ratio > 60 dB Output Level “PHONO” (MM) 3.5mV nominal at 1kHz, 5cm/sec
“LINE” (MC) 220mV nominal at 1kHz, 5cm/sec Phono Pre-Amp Gain 36dB nominal, RIAA equalised
56dB nominal, RIAA equalised Power Supply Requirements 220 to 240 V / 50, 60 Hz Power Consumption 2W Dimensions 435 mm ×353 mm×128 mm (W×D×H) Weight 5.2kg Accessories Included Rubber mat, Dust cover, Platter (with drive belt), Counterweight, AT-HS3 Headshell with AT91R VM stereo cartridge, 45 RPM adapter, Power cable Cartridge & Stylus Model AT91R Type VM Dual Magnet Output Voltage 3.5mV (mV at 1kHz, 5 cm/sec) Vertical Tracking Force Range 1.5 to 2.5g (standard 2.0g) Stylus Construction 0.6 mil bonded conical Cantilever Aluminium pipe Recommended Load Impedance 47,000 ohms Weight 5.0g Headshell Model AT-HS3 Weight 11.1g Overhang Adjustment 8mm Tone arm Type Static balanced straight shaped with soft damping control Effective Length 221.5mm Overhang 19mm Maximum Tracking Error Angle Less than 3° Stylus Pressure Adjustment Range 1 to 4g Applicable Cartridge Weight 14.5 to 20g Anti-skating Range 0 - 3 g
